รายละเอียด

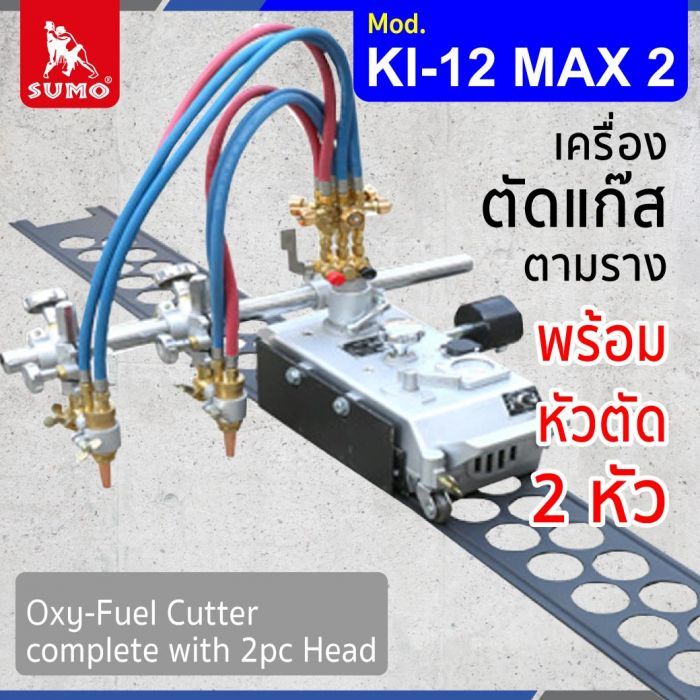

เครื่องตัดแก๊สตามราง รุ่น KI-12 MAX 2 พร้อมหัวตัด 2 หัว
Oxy-Fuel Cutter Model KI-12 MAX 2 complete with 2 pc Head
Component
Features&Benefits
- Superior heat-proof for normal portable cutting machines
- Reliable speed control Readable speed with digital gauge of speed
- Easily controllable clutch
- Application for linear, circular, bevel cutting
- Extendable line track
- Adjustable radius bar for circle cutting
Travelling carriage
- Not affected by intense heat and fluctuating voltage, the maximun driving mechanism ensures steady travelling. Speed Control Mechanism of KC-12 MAX has adopted an exclusive Double Cone Stepless Speed control system (See the drawing), which functions with a condendor motor rotating at regular speed to prevent heat and voltage problems from occurring. No reduction gear is employed in the mechanism. Therefore, any knocking from backlash, noise or vibration does not take place. With entire use of heat-resisting grease, high temperature slodering and teflon wiring, heat protection is considered perfect and durable for long continuous operation, In prolongs the service life of bearings and maintains the "maximum state" for a long period of time.
Optional accessories
- Straight rail Each track of 1.8 (72") long is extensible to the requirement.
- Circle cutting attachment Recommended for cutting circles of large diameter: Ø50~2,400 mm
- Circle cutting rail Recommended for cutting circles of comparatively large daimeter.
- Cutting Range: Ø40~460 mm and Ø1,150~2,400 mm
Multiple-torch option
- Pipe arm (Long type 1,000mm)
- Parallel cutting of wide products can be made with multiple torches
